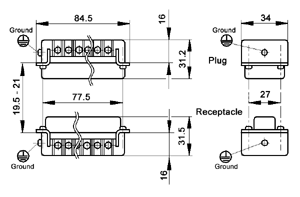

HBE 16 Inserts |
   |
|
Derating Curves |
|
HBE
Screw Terminated: 1.5 mm2 (16 AWG) |
HBE
Screw Terminated: 2.5 mm2 (14 AWG)
|
 |
 |
Technical Data |
|||||
| Rated Voltage: | UL: 600V | VDE: 500V | CSA: 600V | ||
| Rated Current: | UL: 16A | VDE: 16A | CSA: 16A | ||
| Temperature Range: | -40°C to 125°C | ||||
| Pollution Level: | 3 | ||||
| Dimensioning Transient: | 6 kV | ||||
| Termination: | 0.5 - 2.5 mm2 | AWG 20 - 14 | |||
| Contact Material: | Copper Alloy, silver plated | ||||
| Contact Resistance: | <2 mOhm | ||||
| Mating Cycles: | 100 (higher mating cycles depending on the application) | ||||
Part Numbers: |
||||
Plug |
Receptacle |
|||
Screw terminated with wire protection |
10194000 |
10195000 |
||
Screw terminated without wire protection |
10194100 |
10195100 |
||
Mating Components: |
|
 |
 |
 |
||
