EPIC® Rectangular Connectors

HBE 16 Bases
Surface Mount Base: High Profile with Single Lever

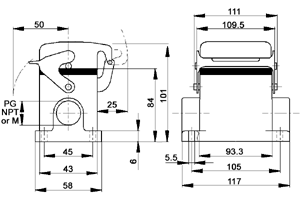

All dimensions are in mm.

Technical Data
	Specifications:		DIN 43652
	Temperature Range:		-40°C to +125°C
	Standard Grey Coating:
		Protection Class:	Nema 4, IP 65
		Material:	Body: Aluminum Alloy, powder coated
			Locking Levers & Bolts: zinc plated steel

Part Numbers- PG
	Size of Entry	PG	AUTOCAD-2D	AUTOCAD-3D
2 Entries	21	701112	-	-
2 Entries	29	701114	-	-

1 Entry	21	701102	-	-
1 Entry	29	701104	-	-
With Dust Cover
2 Entries	21	701152	-	-
2 Entries	29	701154	-	-

1 Entry	21	701142	-	-
1 Entry	29	701144	-	-

Part Numbers- NPT
	Size of Entry	NPT	AUTOCAD-2D	AUTOCAD-3D
2 Entries	3/4"	701112NP
2 Entries	1"	701114NP

1 Entry	3/4"	701102NP
1 Entry	1"	701104NP
With Dust Cover
2 Entries	3/4"	701152NP
2 Entries	1"	701154NP

1 Entry	3/4"	701142NP
1 Entry	1"	701144NP

Part Numbers- METRIC
	Size of Entry	Metric	AUTOCAD-2D	AUTOCAD-3D
2 Entries	25	79111200	-	-
2 Entries	32	79111400	-	-

1 Entry	25	79110200	-	-
1 Entry	32	79110400	-	-
With Dust Cover
2 Entries	25	79115200	-	-
2 Entries	32	79115400	-	-

1 Entry	25	79114200	-	-
1 Entry	32	79114400	-	-
Metric Hoods do not come with a neck.

Mating Components:
HBE 16 Top Entry or Side Entry Hoods with Single Lever Bolts HBE 16 High Profile Top or Side Entry Hoods with Single Lever Bolts
