EPIC® Rectangular Connectors |
HBE 10 Bases |
   |
 |
 All dimensions are in mm. |
 |

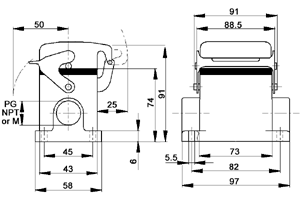

Technical Data |
|||
| Specifications: | DIN 43652 | ||
| Temperature Range: | -40°C to +125°C | ||
| Standard Grey Coating: | |||
 |
Protection Class: | Nema 4, IP 65 | |
|
Material: | Body: Aluminum Alloy, powder coated | |
| Locking Levers & Bolts: zinc plated steel | |||
Part Numbers- PG |
||||
Size
of Entry |
PG |
AUTOCAD-2D |
AUTOCAD-3D |
|
2
Entries |
21 |
700612 |
- |
- |
29 |
700614 |
- |
- |
|
 |
||||
1
Entry |
21 |
700602 |
- |
- |
29 |
700604R |
- |
- |
|
With
Dust Cover
|
||||
2
Entries |
21 |
700652 |
- |
- |
29 |
700654 |
- |
- |
|
|
||||
1
Entry |
21 |
700642 |
- |
- |
29 |
700644 |
- |
- |
|
Part Numbers- NPT |
||||
Size
of Entry |
NPT |
AUTOCAD-2D |
AUTOCAD-3D |
|
2
Entries |
3/4" |
700612NP |
 |
|
1" |
700614NP |
|
|
|
|
||||
1
Entry |
3/4" |
700602NP |
|
|
1" |
700604NP |
|
|
|
With
Dust Cover
|
||||
2
Entries |
3/4" |
700652NP |
|
|
1" |
700654NP |
|
|
|
|
||||
1
Entry |
3/4" |
700642NP |
|
|
1" |
700644NP |
|
|
|
Part Numbers- METRIC |
||||
Size
of Entry |
Metric |
AUTOCAD-2D |
AUTOCAD-3D |
|
2
Entries |
25 |
79061200 |
- |
- |
32 |
79061400 |
- |
- |
|
|
||||
1
Entry |
25 |
79060200 |
- |
- |
32 |
79060400 |
- |
- |
|
With
Dust Cover
|
||||
2
Entries |
25 |
79065200 |
- |
- |
32 |
79065400 |
- |
- |
|
|
||||
1
Entry |
25 |
79064200 |
- |
- |
32 |
79064400 |
- |
- |
|
Metric
Hoods do not come with a neck. |
||||
