HA 48 Inserts |
   |
|
|
All dimensions are in mm. |
Panel Cut-Out
|

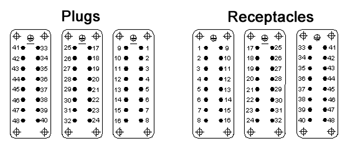

View
from Cable Side  |
|
Derating Curves |
|
HA
Screw Terminated: 1.5 mm2 (16 AWG) |
HA
Screw Terminated: 2.5 mm2 (14 AWG) |
 |
 |
Technical Data |
|||||
| Rated Voltage: | UL: 600V | VDE: 400V | CSA: 600V | SEV: 250V | |
| Rated Current: | UL: 14A | VDE:10A | CSA: 20A | SEV: 10A | |
| Temperature Range: | -40°C to 125°C | ||||
| Test Voltage: | 4 kV | ||||
| Pollution Level: | 3 | ||||
| Dimensioning Transient: | 4 kV | ||||
| Termination: | 0.5 - 2.5 mm2 | AWG 20 - 14 | |||
| Contact Material: | Copper Alloy, silver plated | ||||
| Contact Resistance: | 1.5 - 4mOhm | ||||
| Mating Cycles: | 100 (higher mating cycles depending on the application) | ||||
Part Numbers |
|||||
Plug |
Receptacle |
||||
HA 16 with wire protection, #1-16 |
10530000 |
10531000 |
|||
HA 16 with wire protection, #17-32 |
10540000 |
10541000 |
|||
HA 16 with wire protection, #33-48 |
10540100 |
10541100 |
|||
 |
|||||
HA 16 without wire protection, #1-16 |
10532000 |
10533000 |
|||
HA 16 without wire protection, #17-32 |
10542000 |
10543000 |
|||
HA 16 without wire protection, #33-48 |
10542100 |
10543100 |
|||
Mating Components: |
|
|
|
 |
 |
||
