EPIC® Rectangular Connectors

HA 3/4 Hoods
Side Entry with Single Lever Bolts

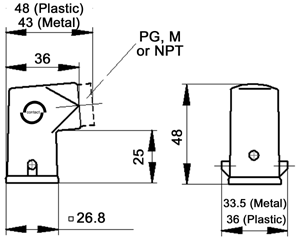

All dimensions are in mm.

Technical Data
	Specifications:		DIN 43652
	Temperature Range:		-40°C to +125°C
	Metal Housing:
		Protection Class:	Nema 4, IP 65
		Material:	Body: Die cast zinc, powder coated
			Locking Levers & Bolts: zinc plated steel
	Plastic Housing:
		Protection Class:	Nema 4X
		Material:	Body: Thermoplastic flame retardant material
			Locking Levers & Bolts: zinc plated steel

Part Numbers- PG
	Size of Entry	Without Cable Gland	With Cable Gland	AUTOCAD-2D	AUTOCAD-3D
Zinc Die Cast	11	-	10427500	-	-

Black Plastic	11	-	10620600	-	-

Grey Plastic	11	-	10427100	-	-

Part Numbers- NPT
	Size of Entry	Without Cable Gland	With Cable Gland	AUTOCAD-2D	AUTOCAD-3D
Zinc Die Cast	1/2”	105123NP	-	-	-

Black Plastic	1/2”	104273NP	-

Grey Plastic	1/2”	104270NP	-

Part Numbers- METRIC
	Size of Entry	Without Cable Gland	With Cable Gland	AUTOCAD-2D	AUTOCAD-3D
Zinc Die Cast	20	-	19427500	-	-

Black Plastic	20	19427300	-	-	-

Grey Plastic	20	19427000	-	-	-
Metric Hoods do not come with a neck.
