EPIC® Rectangular Connectors


HA 3/4 Bases
Angled Panel Mount with Single Lever

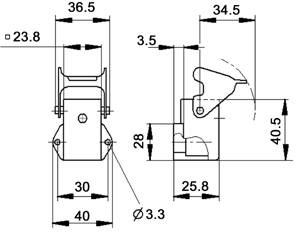

All dimensions are in mm.
Technical Data
  Specifications: DIN 43652
  Temperature Range: -40°C to +125°C
  Metal Housing:
  Protection Class: Nema 4, IP 65
  Material: Body: Die cast zinc, powder coated
  Locking Levers & Bolts: zinc plated steel
  Plastic Housing:
  Protection Class: Nema 4X
  Material: Body: Thermoplastic flame retardant material
  Locking Levers & Bolts: zinc plated steel

Part Numbers

AUTOCAD-2D
AUTOCAD-3D
Metal
10423500
-
-
Black Plastic
10423100
-
-
Grey Plastic
10423000
-
-


Mating Components:
