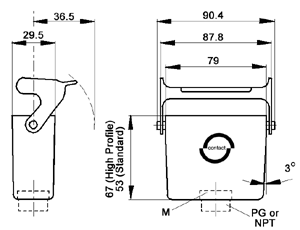

HA 16 Cable Coupler Hoods with Single Lever |
   |
 |
 All dimensions are in mm. |
 |
Technical Data |
|||
| Specifications: | DIN 43652 | ||
| Temperature Range: | -40°C to +125°C | ||
| Standard Grey Coating: | |||
 |
Protection Class: | Nema 4, IP 65 | |
|
Material: | Body: Aluminum Alloy, powder coated | |
| Locking Levers & Bolts: zinc plated steel | |||
Part Numbers- PG |
||||
Size
of Entry |
PG |
AUTOCAD-2D |
AUTOCAD-3D |
|
Standard
Profile |
16 |
105630 |
 |
|
 |
||||
High Profile |
16 |
704802 |
- |
- |
21 |
704804 |
|
|
|
Part Numbers- NPT |
||||
Size of Entry |
NPT |
AUTOCAD-2D |
AUTOCAD-3D |
|
Standard Profile |
1/2" |
105630NP |
|
|
|
||||
High Profile |
1/2" |
704802NP |
|
|
3/4" |
704804NP |
|
|
|
Part Numbers- METRIC |
||||
Size
of Entry |
Metric |
AUTOCAD-2D |
AUTOCAD-3D |
|
Standard Profile |
20 |
19563000 |
- |
- |
25 |
19563200 |
- |
- |
|
|
||||
High Profile |
20 |
79480200 |
- |
- |
25 |
79480400 |
- |
- |
|
Metric Hoods do not come with a neck. |
||||
Mating Components: |
|||||||||
|
|||||||||
|
|||||||||
|
|||||||||
 |
|||||||||
 |
||
