HA 10 Inserts |
   |
|

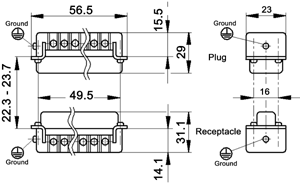

View from Cable Side |
|
Derating Curves |
|
HA Screw Terminated: 1.5 mm2 (16 AWG) |
HA Screw Terminated: 2.5 mm2 (14 AWG) |
 |
 |
Technical Data |
||||||
| Rated Voltage: | UL: 600V | VDE: 400V | CSA: 600V | SEV: 250V | ||
| Rated Current: | UL: 14A | VDE:10A | CSA: 20A | SEV: 10A | ||
| Temperature Range: | -40°C to 125°C | |||||
| Test Voltage: | 4 kV | |||||
| Pollution Level: | 3 | |||||
| Dimensioning Transient: | 4 kV | |||||
| Termination: | 0.5 - 2.5 mm2 | AWG 20 - 14 | ||||
| Contact Material: | Copper Alloy, silver plated | |||||
| Contact Resistance: | 1.5 - 4mOhm | |||||
| Mating Cycles: | 100 (higher mating cycles depending on the application) | |||||
Part Numbers |
||||
Plug |
Receptacle |
|||
HA 10 with Wire Protection |
10440100 |
10441100 |
||
HA 10 without Wire Protection |
10440000 |
10441000 |
||
Mating Components: |
|
|
 |
 |
 |
||
