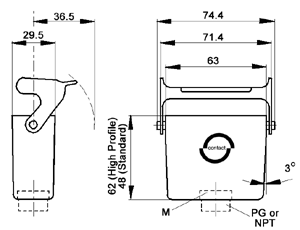

HA 10 Cable Coupler Hoods with Single Lever |
   |
 |
 All dimensions are in mm. |
 |
Technical Data |
||||
| Specifications: | DIN 43652 | |||
| Temperature Range: | -40°C to +125°C | |||
| Standard Grey Coating: | ||||
 |
Protection Class: | Nema 4, IP 65 | ||
|
Material: | Body: Aluminum Alloy, powder coated | ||
| Locking Levers & Bolts: zinc plated steel | ||||
Part Numbers- PG |
||||
Size
of Entry |
PG |
AUTOCAD-2D |
AUTOCAD-3D |
|
Standard
Profile |
13.5 |
104390 |
- |
- |
16 |
704500 |
 |
|
|
 |
||||
High Profile |
21 |
704504 |
|
|
Part Numbers- NPT |
||||
Size of Entry |
NPT |
AUTOCAD-2D |
AUTOCAD-3D |
|
Standard Profile |
1/2" |
104390NP |
|
|
1/2" |
704500NP |
|
|
|
|
||||
High Profile |
3/4" |
704504NP |
|
|
Part Numbers- METRIC |
||||
Size
of Entry |
Metric |
AUTOCAD-2D |
AUTOCAD-3D |
|
Standard Profile |
20 |
19439000 |
- |
- |
25 |
79450000 |
- |
- |
|
|
||||
High Profile |
25 |
79450400 |
- |
- |
Metric Hoods do not come with a neck. |
||||
Mating Components |
|||||||||
|
|
|||||||||
|
|||||||||
|
|||||||||
 |
|||||||||
 |
||
