EPIC® Rectangular Connectors

Modular Inserts
Ethernet Module- RJ 45 Connectors Plus 4 Power Contacts

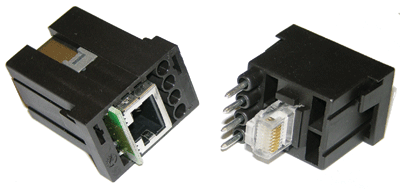

Ethernet Module

Occupies two module postions in frame. Uses standard HD Series Machined Crimp Contacts for Power. RJ 45 plugs are not included.


	Technical Data:
	Rated Voltage:	600V (Power Contacts)
	Rated Current:	10 A (Power Contacts)
	Temperature Range:	-40°C to 125°C

	Plug	Receptacle
Ethernet Module: RJ 45 Connectors + 4 Power Contacts	10344300	10345300

Cable to use with module: UNITRONIC® EtherLine® FD P Cat. 5: 2 Pair & 4 Pair


Contacts: Machined Contacts: Diameter 1.6 mm

Bags of 100
		SILVER		GOLD		Stripping Length (mm)	Cross Section Characteristic
mm2	AWG	Pin	Socket	Pin	Socket	Stripping Length (mm)	Cross Section Characteristic
0.14 - 0.37	26-22	13162000	13163000	13162500	13163500	8	1
0.5	20	13162100	13163100	13162600	13163600	8	2
0.75 - 1.0	18	13162200	13163200	13162700	13163700	8	3
1.5	16	13162300	13163300	13162800	13163800	8	4
2.5	14	13162400	13163400	13162900	13163900	5.8	5


Tools:


Locator	Crimp Dies			Crimp Tool	Removal Tool
11.1472	11.1471			11.1470	11.1610


Mating Components:
Modular Frames
