EPIC® Circular Connectors


EPT Series Industrial Connectors
Housing Configurations



Wall Mount Receptacle (EPT00...)

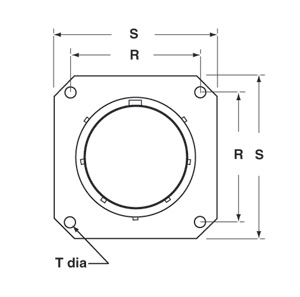

Wall Mt Receptacle

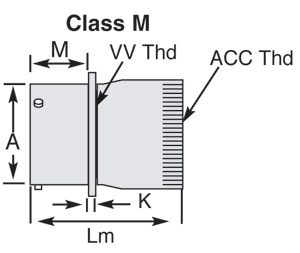

EPT-Class A Box Mt Receptacle

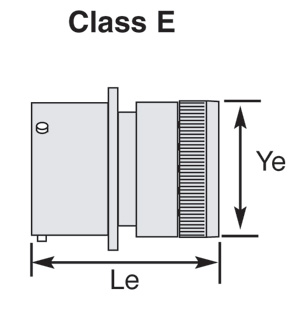

EPT- Cable Coupler Receptacle

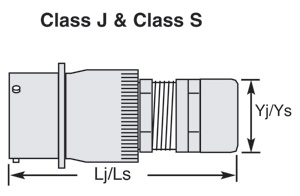

EPT- Cable Coupler- Class J & S

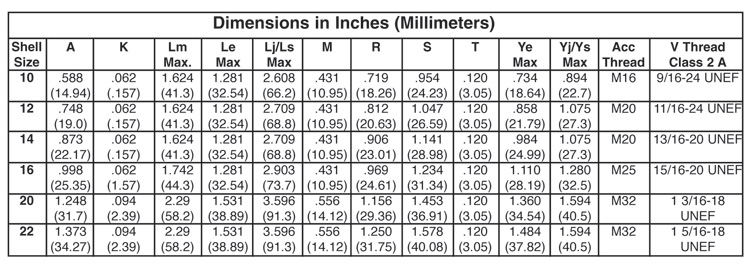

EPT Wall Mt Receptacle

Application: Cable coupler receptacle. Mates with housing styles EPT06
Note: L* dimension equals total connector length including cable acces

Technical Specifcations

Connector Configuration Coding

Insert Configurations

Cable Coupler Receptacles

Box Mount Receptacles

Straight Plug Connectors

Tools & Accessories
