EPIC® Circular Connectors

EPIC® EPT Series circular connectors are modern, rugged, high performance, industrialized versions of the popular MIL-C-26482 military design. Utilizing standard 26482 insert configurations and bayonet coupling housings, they are fully intermatable with their MIL-C-26482 counterparts. They are offered in coupler, connector, and panel mount configurations that satisfy simple cable-to-cable and cable-to-machine requirements. They are widely used for power, control signal transmission, and encoder feedback applications in the plastics, printing, analytical instrument, servo motor, robotic, and machine tool industries, and any other industrial application where a compact, rugged connector is required.

Equipment Description:

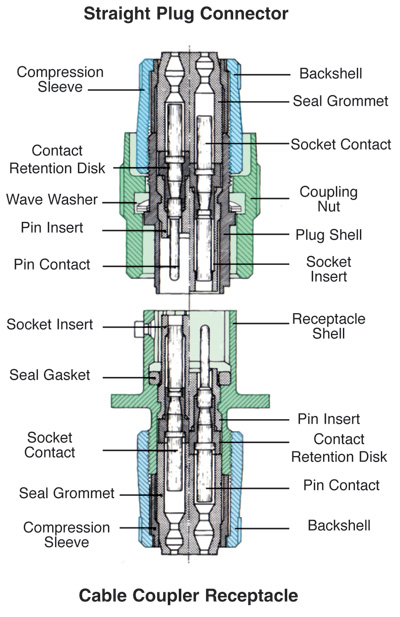

EPIC® EPT Series Connectors are available in four housing styles, six housing sizes, and sixteen contact configurations. Common to all arrangements are a rugged nickel plated aluminum alloy body, thermoplastic rubber contact insert, and gold plated electrical contacts. Cable mounted arrangements are also available with an integral 360 degree EMC shield and cable clamp with environmental seal. The figure below shows the general construction of these connectors. All housings are available with either male pin or female socket contacts.

The connectors are offered with insert configurations from 3 to 55 crimp contacts. Used in combination, they connect one cable with another (cable coupler) or a cable to fixed wiring in a control enclosure or on a machine, robot, instrument, encoder, or servo motor.

Features & Benefits:

The new connectors have many inherent features which offer application advantages and provide significant benefits for the customer. These features make it one of the most application friendly connectors available, and insure quick and easy assembly, high reliability, and long, uninterrupted service life in tough industrial environments.

Key features include:

• Rugged Nickel-plated, Aluminum alloy body

• TPE insert material provides high degree of environmental and chemical resistance.

• Three-point Bayonet Coupling provides positive vibration protection for use with motor
  drives and moving assemblies

• Available backshell designs provide strain relief,   IP67 protection, and 360 degree
  EMC shielding

• All materials used in these connectors are RoHS compliant

• Standard crimp contacts provide easy field assembly and replacement

• Fully intermateable and interchangable with connectors produced in accordance with
  MIL-C- 26482 Series 1 and 2.

Technical Specifications

Connector Configuration

Insert Configurations

Wall Mount Receptacles

Box Mount Receptacles

Cable Coupler Receptacles

Straight Plug Connectors

Tools & Accessories

Cable Applications
