EPIC® Circular Connectors
EAB & EAC Series Industrial Connectors Tools & Accessories

	Shell Size	Flat Panel Gasket
	10	61U05315
	14	61U05316
	16	61U05317
	18	61U05318
	20	61U05319
	22	61U05320
	24	61U05321
	28	61U05322

Grommet Hole Seal Plug

	Contact Size	Color	Part Number
	16	Blue	61U05332
	12	Yellow	61U05333
	8	White	61U05334

Crimp Contacts

	Contact Size	mm2	AWG	L1 inches (mm)	L2 inches (mm)	ød inches (mm)	Pin	Socket
	16S	1 - 1.5	18 - 16	1.050 (26.7)	1.050 (26.7)	.062 (1.6)	61U05335	61U05339
	16	1 - 1.5	18 - 16	1.250 (31.7)	1.440 (36.5)	.062 (1.6)	61U05336	61U05340
	12	2.5 - 4.0	14 - 12	1.480 (37.7)	1.480 (37.7)	.093 (2.4)	61U05337	61U05341
	8	10	8	1.660 (42.0)	1.660 (42.0)	.141 (3.6)	61U05338	61U05342

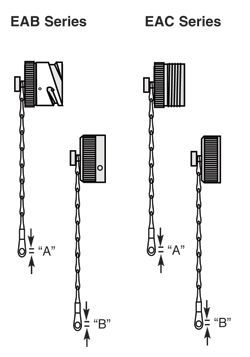

Connector Dust Caps

		EAB Series		EAC Series
	Shell Size	Plug Cap *	Receptacle Cap+	Plug Cap *	Receptacle Cap+
	10SL	61U05367	61U05359	61U05351	61U05343
	14S	61U05368	61U05360	61U05352	61U05344
	16/16S	61U05369	61U05361	61U05353	61U05345
	18	61U05370	61U05362	61U05354	61U05346
	20	61U05371	61U05363	61U05355	61U05347
	22	61U05372	61U05364	61U05356	61U05348
	24	61U05373	61U05365	61U05357	61U05349
	28	61U05374	61U05366	61U05358	61U05350
	*Protective plug caps for use with EA_06... and EA_08... connectors + Protective receptacle caps for use with EA_00...; EA_01...; and EA_02... connectors

Crimp Tools

Contact Size	mm2	AWG	Crimp Tool	Turret Head	Crimp Gage Go-No Go	Insertion Tool	Removal Tool
16S	1 - 1.5	24-20	61U05397 (AF8-M22520/1-01	61U05398 (TH1A-M22420/1-02	61U05399 (G125-M22520-1-01	61U05400 (DAK55-16A)	61U05403 (DRK56-16A)
16	1 - 1.5	20 - 16				61U05401 (DAK55-12A)	61U05404 (DRK56-12A)
12	2.5 - 4.0	14 - 12
8	10	8	*1	*1	*1	61U05402 (DAK55-8B)	61U05405 (DRK56-8B)

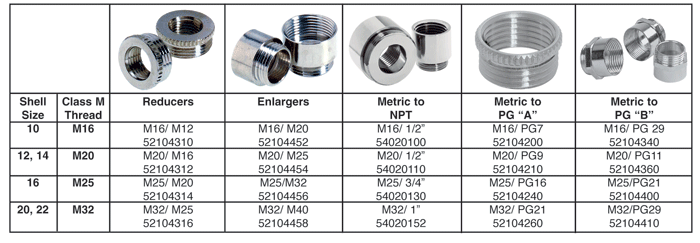

SKINDICHT® Reducers, Enlargers, and Adapters
For use with Class M connectors

Overview
Technical Specifcations
Connector Configuration Coding
Insert Configurations
Wall Mount Receptacles
Box Mount Receptacles
Cable Coupler Receptacles
Straight Plug Connectors
Right Angle Plugs
Cable Applications
