Connector Accessories


Coding Pins



Coding is used when several connectors are mounted next to one another. This helps prevent incorrect connections.
POLARISING WITH KEY PIN
Insert
Part #
Standard Pack
HA, HBE, HBS, HBVE, HD, HDD, HEE, MC, MP
10019000
50
STA
10.509000
50

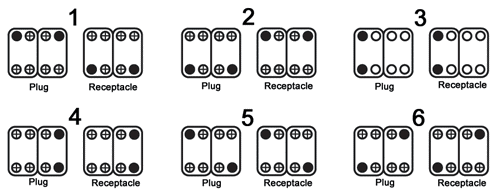

Key Positions
for 1 insert
Key Positions
for 2 inserts

Key Pin
Fixing Screw
POLARISING WITH GUIDE PIN & SOCKET
Insert
Part #
Type
Standard Pack
HA, HBE, HBS, HBVE, HD, HDD, HEE, MC, MP
11280000
Guide Pin
50
11281000
Guide Socket
50

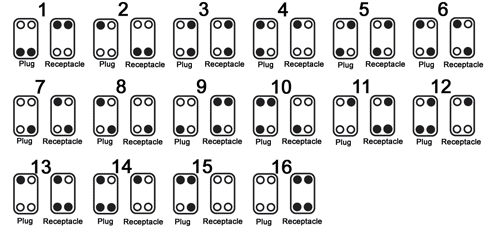

Key Positions
for 1 insert

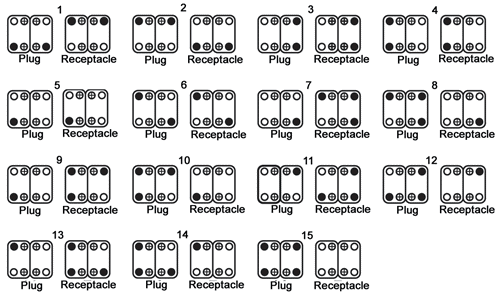

Key Positions
for 2 inserts

Key Pin
Fixing Screw
Guide Socket
POLARISING WITH CONTACT LOSS
Insert
Part #
Standard Pack
Removal Tool: 11161200
HD 7/8 Coding Pin
11162000
100
HA 3/4 Coding Pin
10451400
50
HQ 5 Coding Pin
10436500
-
