Calculate your savings when using
ÖLFLEX® Tray Cable in your installation
Installation Requirements
Length of Installation (ft.)
Number of Vertical Drops
Length of Drops (ft.)
Labor / Hour Rate                   $

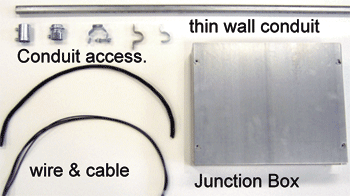

ÖLFLEX® Tray Application Pictures
Assumptions
1. Using 3/4" conduit for each cable at .34/ft using 20 ft sections in tray and 10 ft sections for the drop.
2. Using a clamp at .21/ea for every 6 ft of cable for the drops and conduit couplers at .34/ea.
3. Using one junction box for each drop at $21/box and one connector at .27/ea into the box for each cable.
4. Using 10% of material costs for Tray II for areas where conduit will be used for safety reasons.
5. The price for VNTC is Lapp USA sell price.
6. Using a labor rate of $60/hour. For 100 ft of cable installation the labor in hours is: 9 hours for THHN; 6.5 hours for VNTC; 4.5 hours for Tray II.
7. Support Systems: Overhead Tray for Tray II & VNTC is $10/ft. Conduit System for THHN is $1.03/ft (2" conduit)

ÖLFLEX® TRAY II ÖLFLEX® TC 600
ÖLFLEX® AUTO-I ÖLFLEX® CONTROL          TM
(Optional)
Enter your costs if different than the set prices
VNTC Conduit Cost 3/4" = 1 cable per conduit
(Set price is $0.34/ft)
$

VNTC Conduit Cost 1 1/2" = 3 cables per conduit
(Set price is $0.86/ft)

$
VNTC Conduit Cost 2" = 4 cables per conduit
(Set price is $1.03/ft)
$

Coupler Cost
(Set price $0.34 each)
$
Support System Cost
(Set price is $10/ft)
$
THHN Conduit Cost
3 cables per 2"conduit
(Set price is $1.03/ft)
$
Connector Cost
(Set price is $0.27 each)
$
Junction Box Cost
(Set price is $21 each)
$
Clamp Cost
(Set price is $0.21 each)
$

Labor/Hour Rate
VNTC (6.5 hrs/100ft)
ÖLFLEX® TRAY II (4.5 hrs/100ft)
ÖLFLEX® Cable Part Number
Description 2. Cable Pick List
221004
10 AWG / 4 Conductors
221203
12 AWG / 3 Conductors
221204
12 AWG / 4 Conductors
221404
14 AWG / 4 Conductors
221407
14 AWG / 7 Conductors
221604
16 AWG / 4 Conductors
221612
16 AWG / 12 Conductors
221618
16 AWG / 18 Conductors
221805
18 AWG / 5 Conductors
221812
18 AWG / 12 Conductors
  # of Cables from Pick List
3. Total Savings Output
Total Wire & Cable Quantity ft.

Cost Comparison ÖLFLEX® Tray II VNTC THHN
Cable (Based on $1.20 copper/lb.)
$0.00
$0.00
$0.00
Support System
$0.00
$0.00
$0.00
Conduit
$0.00
$0.00
$0.00
Coupler
$0.00
$0.00
$0.00
Connectors
$0.00
$0.00
$0.00
Junction Box
$0.00
$0.00
$0.00
Clamps
$0.00
$0.00
$0.00
Total Bill of Material
$0.00
$0.00
$0.00

Labor
$0.00
$0.00
$0.00
Total Estimated Installation Cost
$0.00
$0.00
$0.00
