OLFLEX® SERVO FD LK-INX |
|||

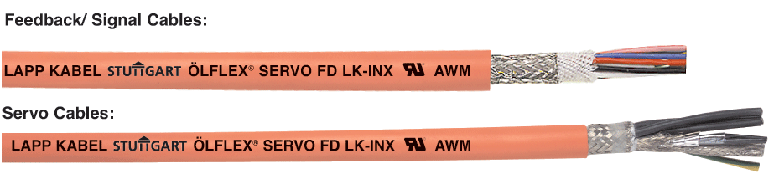

OLFLEX® SERVO FD LK-INK is a highly flexible, oil resistant, UL, CSA, & CE power w/ pairs and feedback/signal cable in accordance with Indramat standards. It is designed for continuous flex use and can be provided as a complete assembly. Recommended Applications: Application Advantage: |
 Finely stranded copper conductors; pairs are insulated with special elastomeric material; power conductors insulated with TPE; pairs in servo cables shielded with aluminum foil and tinned copper shield (not all pairs are shielded for feedback cables); overall tinned copper braid (85% coverage); specially formulated polyurethane jacket. |
 |
|
|
|||||||||||||||||||||||||||||||
 |
|||
 |
Minimum Bend Radius | ||
| - Signal: | 10 x cable diameter | ||
| - Servo: | 7.5 x cable diameter | ||
 |
Temperature range: | ||
| - Signal: | -30°C to +80°C | ||
| - Servo: | -10°C to +80°C | ||
 |
Nominal Voltage: | 1000V (supply conductors) | |
| - Supply Conductors: | 600/1000V | ||
| - Feedback/Signal Cables: | 300V | ||
 |
Conductor Stranding: | Extra Fine strands in acc. with IEC 60228 Cl.6 | |
 |
Color code: | Black with white numbers plus green/yellow ground Signal Pair: Black with white numbers 5/6, 7/8 |
|
| Part # 7072400 & 7072401 | 24 AWG/4pr: Brown/Green,
Gray/Pink, Blue/Violet, Red/Black 18 AWG or 20 AWG/2c: White, Brown |
||
| Part # 7072402 | 20 AWG/9c: Green, Brown, Gray, Yellow, Black, Blue, Red, White, Pink | ||
| Part # 7072414 | 26 AWG/ 4c: Yellow/Black, Brown/Black, Green/Black, Red/Black 26 AWG/ 4pr: Red & Black, Brown & Green, Yellow & Violet, White & Green 18 AWG/ 4c: White, Brown/Green, White/Green, Blue |
||
| Part # 7072415 | 24 AWG/ 2pr: White & Brown, Gray & Pink 20 AWG/ 2c: Pink, Gray |
||
| Part # 7072416 | 24 AWG/ 2pr: Red & Black, Gray & Pink 20 AWG/ 2c: White, Brown |
||
| Part # 7072417 | 20 AWG/ 3c: 3- Black numbered 1, 2, 3 and green/yellow ground 19 AWG/ 2c: 2- Black numbered 5,6 |
||
 |
Approvals: | ||
| Power Cables: | |||
| UL: | AWM Style 20234 | ||
| CSA: | AWM II A/B FT1 | ||
| Feedback Cables: | |||
| UL: | AWM 20236 | ||
| CSA: | AWM II A/B FT1 | ||
  |
||
