Strain Relief Cord Connectors



SKINDICHT® MA-PG/M Adapters
PG to Metric

rohs


Connecting adapter with PG outer threads and Metric inner threads.



Technical Data:

  Materials:
    Body Material: Nickel-Plated Brass
    O-Ring: NBR

Samplerequest




Find Mating Parts for your cable
EPIC ConnectorsNeed an EPIC® Connector?    Skintop Need a SKINTOP® Strain Relief?
Enter your Cable Part #

Part Number Thread Type & Size
Male to Female
Standard Pack Size

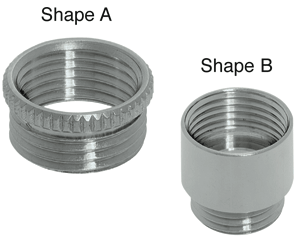

Shape A
52104492 PG-11 to M-16X1.5 50
52104495 PG-16 to M-20X1.5 50
52104497 PG-21 to M-20X1.5 50
52104498 PG-21 to M-25X1.5 50
52104500 PG-29 to M-25X1.5 25
52104501 PG-29 to M-32X1.5 25
52104503 PG-36 to M-40X1.5 10
Shape B
52104490 PG-7 to M-12X1.5 100
52104491 PG-9 to M-16X1.5 50
52104493 PG-11 to M-20X1.5 50
52104494 PG-13 to M-20X1.5 50
52104496 PG-16 to M-25X1.5 50
52104499 PG-21 to M-32X1.5 50
52104502 PG-29 to M-40X1.5 10
