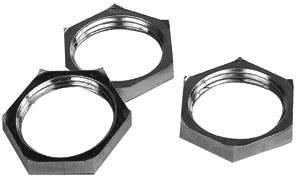

SKINDICHT® SM-PE LOCK NUTS
Brass Grounding Lock Nuts for PG Threaded Products

rohs


SKINDICHT® SM-PE Lock Nuts are required wherever varnished, anodized and powder coated housings are used. When the lock nut is tightened, the raised edges cut through the insulating layer, guaranteeing optimum contact. Ideal for use with MS-SC cable grounding cable glands.

Technical Data:

  Materials: Nickel-Plated Brass

Samplerequest



Find Mating Parts for your cable
EPIC ConnectorsNeed an EPIC® Connector?    Skintop Need a SKINTOP® Strain Relief?
Enter your Cable Part #

Part Number Thread Type & Size Nut Thickness Wrenching Flats Standard Pack Size
inches mm inches mm
52103200 PG-7 0.185 4.7 0.590 15 100
52103210 PG-9 0.185 4.7 0.709 18 100
52103220 PG-11 0.185 4.7 0.827 21 100
52103230 PG-13 0.185 4.7 0.906 23 100
52103240 PG-16 0.185 4.7 1.024 26 100
52103250 PG-21 0.205 5.2 1.260 32 50
52103260 PG-29 0.224 5.7 1.614 41 50
52103270 PG-36 0.264 6.7 2.008 51 50
