SKINDICHT® SHV-M
Metallic Strain Relief Cable Gland in Metric Threads with Sealing Capability
up to 300 Ft. (10 Bar)

CE rohs

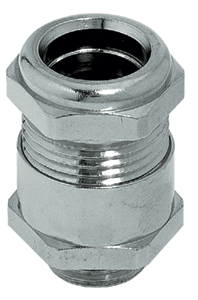

The SKINDICHT® SHV-M cable gland is a metallic strain relief cable gland with a special tapered seal designed to provide liquid tight sealing down to 300 feet (10 Bar) of water pressure. An o-ring is included on the mounting thread to provide additional sealing.

Application Advantage:
• Excellent compression strength and strain relief
• Ideal for underwater applications where water pressure tight protection is required

Technical Data:

  Materials:
    Body: Nickel-Plated Brass
    Cone/Seal: CR/NBR
    O-Ring: Perbunan (NBR)

  Temperature: -20ºC to +80ºC

  Protection Seal: IP 68, 10 Bar

    Locknuts: Add SM Locknuts

Samplerequest



Find Mating Parts for your cable
EPIC ConnectorsNeed an EPIC® Connector?    Skintop Need a SKINTOP® Strain Relief?
Enter your Cable Part #

Part Number Thread Type & Size Inner Thread Bushing ID
inches 		Clamping Range
ØF
inches 		Wrenching Flats
inches 		C
Maximum Overall Length 		D
Thread Length
 		Standard Pack Size
SW1 SW2
52105270 M-12x1.5 PG-7 0.197 .118 - .189 0.551 .551 1.024 0.197 50
20005280 M-16x1.5 PG-9 0.236 .177 - .228 0.709 .669 1.043 0.197 50
52105290 M-16x1.5 PG-9 0.276 .177 - .268 0.709 .669 1.043 0.197 50
52105300 M-20x1.5 PG-11 0.276 .236 - .268 0.866 .787 1.220 0.236 25
52105310 M-20x1.5 PG-11 0.354 .256 - .346 0.866 .787 1.220 0.236 25
52105320 M-20x1.5 PG-13 0.354 .256 - .346 0.866 .866 1.280 0.236 25
52105330 M-20x1.5 PG-13 0.433 .354 - .425 0.866 .866 1.280 0.236 25
52105340 M-20x1.5 PG-16 0.433 .354 - .425 0.945 .945 1.358 0.236 25
52105350 M-20x1.5 PG-16 0.512 .374 - .504 0.945 .945 1.358 0.236 25
52105360 M-20x1.5 PG-16 0.591 .512 - .583 0.945 .945 1.358 0.236 25
52105370 M-25x1.5 PG-21 0.630 .531 - .622 1.181 1.181 1.516 0.276 25
52105380 M-25x1.5 PG-21 0.709 .591 - .701 1.181 1.181 1.516 0.276 25
52105390 M-25x1.5 PG-21 0.787 .689 - .780 1.181 1.181 1.516 0.276 25
52105400 M-32x1.5 PG-29 0.866 .689 - .858 1.575 1.575 1.673 0.315 10
52105410 M-32x1.5 PG-29 0.945 .748 - .937 1.575 1.575 1.673 0.315 10
52105420 M-32x1.5 PG-29 1.024 .906 - 1.016 1.575 1.575 1.673 0.315 10
