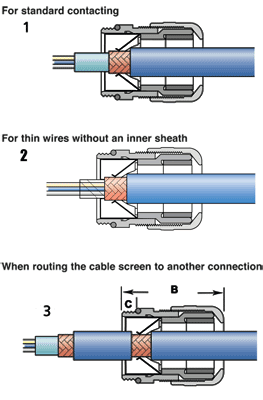

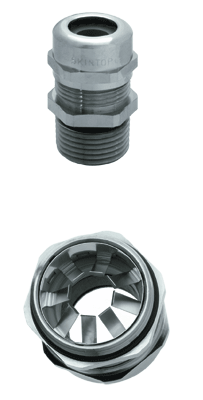

SKINTOP® MS-SC is uniquely designed to address EMC considerations with its simplified grounding feature. In a few easy steps, the cable is grounded, strain relieved and sealed from moisture and dust in accordance with IP 68. The cable gland's contact springs establish a continuous electrical path from the shield of the cable to equipment ground, creating a secure shield connection.
Application Advantage:
• Optimal EMC protection
• Suitable for braid shielded cable
• Minimal assembly steps
• The contact spring's unique design can accept cable
diameters with wide dimensional tolerances
• Available in both standard and long length threads for
heavy-wall application |
