Flexible Conduit & Accessories

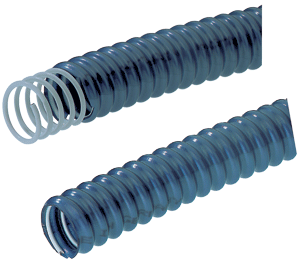

SILVYN® FD-PU Conduit
Continuous Flex Spiral Steel Reinforced PUR Conduit

VDE


SILVYN® FPS is designed with an insulated spiral steel spring with a PVC jacket which creates a continuous flexing conduit.

Application Advantages:
• Strong and durable conduit that is rugged yet extremely flexible
• Silicone free, UV and chemical resistant
• Airtight and watertight
• Excellent for applications where abrasion resistance is a concern


Silvyn USK
SILVYN LKI

Technical Data:

  Materials: Polyurethane jacket with PVC insulated spring steel wire spiral UL 94 V0

  Temperature: -40ºC to +80ºC

  Color: Metallic Blue

  IP Protection: IP 68

Samplerequest




Find Mating Parts for your cable
EPIC ConnectorsNeed an EPIC® Connector?    Skintop Need a SKINTOP® Strain Relief?
Enter your Cable Part #

Part Number Outer Diameter Inner Diameter Bend Radius Conduit Coil Put-ups
Feet
Thread Type & Size for Fittings Weight
lbs/mft
inches mm inches mm inches mm PG Metric
LKI-M
Metric
UK-M
64453662 0.394 10 0.276 7 0.315 8 164 PG 7 M12X1.5 M10X1.5 47
64453672 0.551 14 0.394 10 0.394 10 164 PG 9 M16X1.5 M12X1.5 57
64453682 0.669 17 0.512 13 0.512 13 164 PG 11 M20X1.5 M16X1.5 87
64453692 0.748 19 0.591 15 0.519 15 164 PG 13 --- --- 101
64453702 0.827 21 0.630 16 0.669 17 164 PG 16 M25X1.5 M20X1.5 141
64453712 1.063 27 0.827 21 0.787 20 164 PG 21 M32X1.5 M25X1.5 195
64453721 1.417 36 1.142 29 0.984 25 82 PG 29 M40X1.5 M32X1.5 296
64453731 1.772 45 1.496 38 1.417 36 82 PG 36 M50X1.5 M40X1.5 364
64453751 2.205 56 1.890 48 1.575 40 82 PG 48 M63X1.5 M50X1.5 588

SILVYN® USK & SILVYN® LKI Fittings are available in PG & Metric Sizes
