Strain Relief Cord Connectors

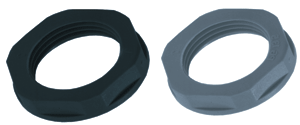

SKINTOP® GMP-GL Hexagonal Nylon Locknuts with Metric Threads


These lock nuts are designed to be used with SKINTOP® cable connectors with Metric Threads.


PG Thread NPT Thread

Technical Data:

		Materials:	Polyamide, glass fiber reinforced

		Color:	Black (RAL 9005) UV Resistant
			Gray (RAL 7001)
			Light Gray (RAL 7035) Halogen-Free

		Temperature Range:	-20°C to +100°C

Part Number	Thread Type	SW Wrenching Flats inches	B Nut Thickness inches	Standard Pack	Weight 100 pcs. lbs.
Part Number	Thread Type	SW Wrenching Flats inches	B Nut Thickness inches	Standard Pack	Weight 100 pcs. lbs.
Black
53119100	M-12X1.5	0.669	0.197	100	0.25
53119110	M-16X1.5	0.866	0.197	100	0.50
53119120	M-20X1.5	1.063	0.236	100	0.50
53119130	M-25X1.5	1.339	0.236	100	0.75
53119140	M-32X1.5	1.614	0.276	100	1.25
53119150	M-40X1.5	1.969	0.276	25	1.75
53119160	M-50X1.5	2.362	0.315	25	2.00
53119170	M-63X1.5	2.953	0.315	25	3.00
Gray
53119000	M-12X1.5	0.669	0.197	100	0.25
53119010	M-16X1.5	0.866	0.197	100	0.50
53119020	M-20X1.5	1.063	0.236	100	0.50
53119030	M-25X1.5	1.339	0.236	100	0.75
53119040	M-32X1.5	1.614	0.276	100	1.25
53119050	M-40X1.5	1.969	0.276	25	1.75
53119060	M-50X1.5	2.362	0.315	25	2.00
53119070	M-63X1.5	2.953	0.315	25	3.00
Light Gray: Halogen-Free
53119200	M-12X1.5	0.669	.197	100	0.25
53119210	M-16X1.5	0.866	.197	100	0.50
53119220	M-20X1.5	1.063	.236	100	0.50
53119230	M-25X1.5	1.339	.236	100	0.75
53119240	M-32X1.5	1.614	.276	100	1.25
