Flexible Conduit & Accessories

SILVYN® AS Conduit
Flexible Steel Reinforced Metal Conduit

VDE


SILVYN® AS is designed with an interlocking spirally wound metal armor.

Application Advantages:
• Highly resistant to pressure, impact and mechanical stress, while providing superior flexing qualities
• Ideal for heavy mechanical stress

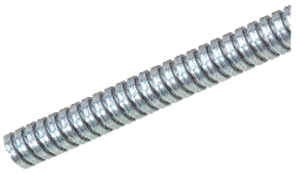

Silvyn AS
Silvyn US
SILVYN US MS-DR

Technical Data:

  Materials: Galvanized steel

  Temperature: up to 220ºC

  Color: Gray

  IP Protection: IP 40

Samplerequest




Find Mating Parts for your cable
EPIC ConnectorsNeed an EPIC® Connector?    Skintop Need a SKINTOP® Strain Relief?
Enter your Cable Part #

Part Number Outer Diameter Inner Diameter Bend Radius Conduit Coil Put-ups
Feet
Thread Type & Size for Fittings Weight
lbs/mft
inches mm inches mm inches mm PG Metric
61802080 0.394 10 0.315 8 1.102 28 164 PG 7 M10X1.5 43
61802090 0.551 14 0.433 11 1.339 34 164 PG 9 M12X1.5 69
61802100 0.669 17 0.551 14 1.575 40 164 PG 11 M16X1.5 87
61802110 0.748 19 0.630 16 1.772 45 164 PG 13 --- 101
61802120 0.827 21 0.709 18 1.969 50 164 PG 16 M20X1.5 116
61802130 1.063 27 0.906 23 2.480 63 164 PG 21 M25X1.5 202
61802140 1.417 36 1.220 31 3.346 85 82 PG 29 M32X1.5 354
61802150 1.772 45 1.575 40 3.937 100 82 PG 36 M40X1.5 464
61802170 2.205 56 2.008 51 4.921 125 82 PG 48 M50X1.5 551

*SILVYN® USK and SILVYN® US MS-DR are available in PG & Metric sizes.
