Strain Relief Cord Connectors



SKINTOP® SLN/SLRN
Liquid Tight, Non-Metallic Strain Relief Cable Gland with NPT Threads
 UL

SKINTOP® SLN/ SLRN is a durable, liquid tight, easy to assemble strain relief cable gland with NPT threads that is universally suited for all types of machinery & equipment, including automation, motion control, process control and robotics.

Application Advantage:
• The heavy duty SKINTOP¨ design provides great pullout strength and very reliable strain relief
• Superior integrated locking mechanism includes an internal ratchet for vibration proof protection
• Multi-trapezoidal thread requires just one twist to tighten
• Generous high quality neoprene bushing provides a liquid tight and dust proof, hermetic seal
non-metallic strain relief

Technical Data:

  Materials:
    Body: Polyamide
    Bushing: CR

  Color: Black (RAL 9005) UV Resistant
      Gray (RAL 7001)

  Protection Seal: 70 PSI
      IP 68, 5 Bar


Exceeds NEMA 6/6P Pressure rating


  Temperature Range:


    Static: -40°C to +80°C
    Dynamic: -20°C to +80°C

Please note that locknuts are not included. They may be ordered separately, see SKINTOP® GMP-GL

Samplerequest



Find Mating Parts for your cable
EPIC ConnectorsNeed an EPIC® Connector?    Skintop Need a SKINTOP® Strain Relief?
Enter your Cable Part #

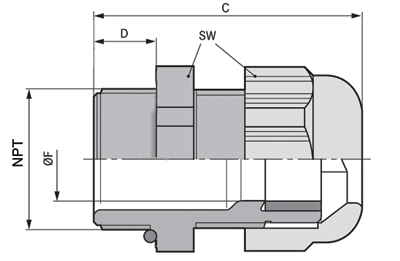

Part Number Thread Type UL Status Clamping Range
ØF
inches 		SW
Wrenching Flats
inches 		C
Overall Length
inches 		D
Thread
Length
inches 		Standard
Pack
Size 		Weight
100 pcs.
lbs.

NPT Thread - Standard Type - Black
S2138 NPT-3/8" R .138 - .315 0.748 1.693 0.591 100 2.00
S2112 NPT-1/2" L .197 - .472 0.945 1.772 0.591 100 2.50
S2134 NPT-3/4" L .512 - .709 1.299 2.087 0.591 50 5.50
S2101 NPT-1" L .748 - 1.000 1.654 2.362 0.591 25 9.00
NPT Thread - Standard Type - Gray
S1138 NPT-3/8" R .138 - .315 0.748 1.693 0.591 100 2.00
S1112 NPT-1/2" L .197 - .472 0.945 1.772 0.591 100 2.50
S1134 NPT-3/4" L .512 - .709 1.299 2.087 0.591 50 5.50
S1101 NPT-1" L .748 - 1.000 1.654 2.362 0.591 25 9.00
NPT Thread with Reducer Bushing- Black
S2238 NPT-3/8" R .079 - .236 0.748 1.693 0.591 100 2.00
S2212 NPT-1/2" L .157 - .354 0.945 1.772 0.591 100 2.50
S2234 NPT-3/4" L .354 - .630 1.299 2.087 0.591 50 5.50
S2201 NPT-1" L .551 - .827 1.654 2.362 0.591 25 9.00
NPT Thread with Reducer Bushing- Gray
S1238 NPT-3/8" R .079 - .236 0.748 1.693 0.591 100 2.00
S1212 NPT-1/2" L .157 - .354 .945 1.772 0.591 100 2.50
S1234 NPT-3/4" L .354 - .630 1.299 2.087 0.591 50 5.50
S1201 NPT-1" L .551 - .827 1.654 2.362 0.591 25 9.00
Orders of 2000 pieces or more per item will be bulk packaged unless otherwise requested.
UL Status: R = Recognized; L = Listed
