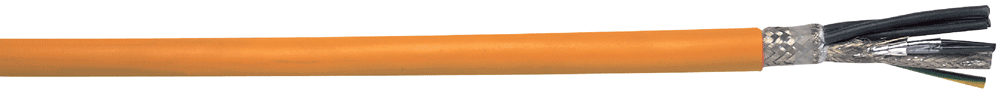

Servo cables according to INDRAMAT® Standard INK are highly flexible, oil-resistant, and are UL, CSA, and CE rated. Power cables with pairs and feedback/signal cables are in accordance to INDRAMAT standards.

Recommended Applications

Motor connections for servo motors; machine tools; food & beverage, automotive, and packaging industries for continuous flexing cable track

Approvals

Shielded Construction

Conductors: Finely stranded bare copper

Pairs: Shielded with foil and tinned copper (not all feedback pairs are shielded)

Insulation:
   Pairs & power conductors: TPE

Shielding: Overall tinned copper braid

Jacket: Orange polyurethane

Application Advantage

  • Built in accordance with INDRAMAT® standards
  • Overall shield for EMI & RFI protection
  • Abrasion-, oil-, and cut-resistant, halogen-free jacket
  • Cables can be provided as a complete assembly; call factory for price and delivery information

Technical Data

Minimum Bend Radius

- Feedback/signal cable:

10 x cable diameter

- Servo/motor cable:

7.5 x cable diameter

Temperature Range

- for continuous flexing:

-30°C to +80°C

- for stationary use:

-50°C to +80°C

Nominal Voltage

- Power/control conductors:

1000V

- Feedback/signal conductors:

300V

Conductor Stranding

Class 6 super fine wire

Color Code

- Feedback cable:

see following color chart

- Power conductors:

Black with white numbers: 1, 2, 3, plus green/yellow ground

- Control pairs:

Black with white numbers: 5/6, 7/8

Approvals

UL:

AWM 20234 (servo/motor)
AWM 20236 (signal)

Canada:

CSA AWM I/II A/B FT1

Additional:

CE & RoHS

Color Code

Part Number

Size / Number
of Conductors

Color Code



7072400

24AWG 4pr

brown & green — gray & pinnk — blue & violet — red & black

18 AWG/2c

white — brown

7072401

24 AWG/4pr

brown & green — gray & pink — blue & violet — red & black

20 AWG/2c

white — brown

7072402

20 AWG/9c

yellow & green — black & brown — red & orange

7072414

26 AWG/4c*

yellow/black — blue/black — green/black — red/black

26 AWG/4pr

red & black — brown & green — yellow & violet — gray & pink

18 AWG/4c

white — brown/green — white/green — blue

7072415
drain wire under
overall braid shield

2 x (24 AWG/1pr)*

white & brown — green & yellow

20 AWG/2c

pink — gray

7072416
drain wire under
overall braid shield

24 AWG/2pr

red & black — gray & pink

20 AWG/2c

white — brown

* Shield of metallized foil & tinned copper braid

Part

Number

Size / Number
of Conductors

INDRAMAT®
Part Number

Nominal
Outer Diameter

Copper
Weight

Approx.
Weight

SKINTOP®
MS-MC

PG Thread

SKINTOP®
MS-M BRUSH

Metric Thread

(in)

(mm)

(lbs/mft)

(lbs/mft)

Feedback/Signal Cables

7072400

24 AWG/4pr + 18 AWG/2c

INK-0209

0.347

8.8

50

81

53112220

ÔÇö

7072401

24 AWG/4pr + 20 AWG/2c

INK-0448

0.335

8.5

47

67

53112220

ÔÇö

7072402

20 AWG/9c

INK-0208

0.347

8.8

50

85

53112220

ÔÇö

7072414

18 AWG/4c + 26 AWG/4pr
+ (26 AWG/4c)

INK-0532

0.382

9.7

54

94

53112220

53112676

7072415

2 x (24 AWG/1pr) + 20 AWG/2c

INK-0234

0.343

8.7

31

60

53112220

ÔÇö

7072416

24 AWG/2pr + 20 AWG/2c

INK-0750

0.299

7.6

24

62

53112210

ÔÇö

Servo/Motor Cables

7072417

19 AWG/4c + 20 AWG/1pr

INK-0670

0.394

10.0

49

89

53112230

53112676

7072403

18 AWG/4c + 2 x (19 AWG/1pr)

INK-0653

0.453

11.5

114

152

53112240

53112676

7072404

16 AWG/4c + 2 x (19 AWG/1pr)

INK-0650

0.481

12.2

127

180

53112240

53112676

7072405

14 AWG/4C + 2 x (18 AWG/1pr)

INK-0602

0.595

15.1

142

215

53112250

53112676

7072406

12 AWG/4c + (18 AWG/1pr)
+ (16 AWG/1pr)

INK-0603

0.630

16.0

206

316

53112250

53112676

7072407

10 AWG/4c + (18 AWG/1pr)
+ (16 AWG/1pr)

INK-0604

0.741

18.8

246

403

53112260

53112677

7072408

8 AWG/4c + (18 AWG/1pr)
+ (16 AWG/1pr)

INK-0605

0.867

22.0

380

571

53112260

53112678

7072409

6 AWG/4c + 2 x (16 AWG/1pr)

INK-0606

0.993

25.2

563

685

53112270

53112678

7072410

4 AWG/4c + 2 x (16 AWG/1pr)

INK-0607

1.103

28.0

827

954

53112270

53112679

( ) = shielded pairs

INDRAMAT® is a registered trademark of Bosch Rexroth AG. Bosch Rexroth part numbers are supplied for informational purposes only. Recommended SKINTOP® assumes minimal ODÔÇłvariance. Additional configurations are available, please see our SKINTOP® Section. Photographs are not to scale and are not true representations of the products in question. If not otherwise specified, all values relating to the product are nominal values.
