Quick & Easy Din Rail Adapters

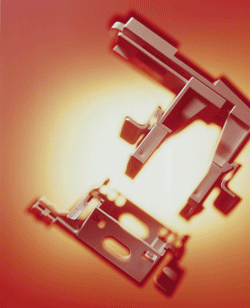

  Quick&Easy Din Rail Adapter

Fitting the Pieces Together

The Quick & Easy system greatly simplifies mounting a wide range of EPIC® connectors onto standard DIN rail without the added cost of housings. The system can be purchased as one complete unit or the upper and lower portions can be purchased separately. The upper portions come in 4 different sizes to accommodate HBE, HD, HDD, HEE, HBS, HBVE, Modular (MC) contact inserts. The bottom portion of the system adjusts to accommodate all 4 sizes. The system components lock into place via snap hooks and are directly mateable with existing systems. The slider latch allows for the quick removal and attachment of the base from the DIN rail for wiring. Also, the unit can be labeled in three places with printed or handwritten labels. A special coding set with key pin will allow for coding of the inserts to prevent mismatch of side by side mounted connectors.


Technical Data:
• Locking Device: For DIN Rail according to DIN EN 50022
• Material: Polycarbonate
• Material Properties: Phosphorus & Halogenous free
• Combustibility Class: V0 (UL 94)
• Temperature Range: -40° to 125°C


Key Pin &
Coding Plug
Coding Scheme
Dimensional Data
Key PinCoding Plug

Coding Scheme
Dimensional Data
Complete Systems:
Part # Description
10.027000 HBE 6 Complete Quick & Easy Set
10.027100 HBE 10 Complete Quick & Easy Set
10.027200 HBE 16 Complete Quick & Easy Set
10.027300 HBE 24 Complete Quick & Easy Set
* Standard Pack of 1
Upper Part of System
Part # Description
10.027410 HBE 6 Top Part of Quick & Easy System
10.027510 HBE 10 Top Part of Quick & Easy System
10.027610 HBE 16 Top Part of Quick & Easy System
10.027710 HBE 24 Top Part of Quick & Easy System
* Standard Pack of 10
Lower Part of System
Part # Description
10.027810 HBE 6, 10, 16, 24 Bottom Part of Quick & Easy System
* Standard Pack of 10
Coding Set:
Part # Description
10.028000 Key Pin & Coding Plug
* Standard Pack of 50
