SKINTOP® Strain Relief Cord Connectors


SKINTOP Strain Relief

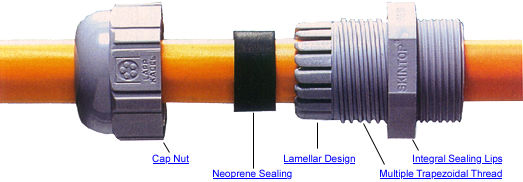

Cap nut with ergonomically designed gripping grooves. The gripping surfaces are generously dimensioned for spanners. Integral locking feature for vibration-resistant assembly.

Neoprene sealing for a hermetic seal (IP68)*. Every SKINTOP® version is available with reducing seal insert for smaller cable diameters.

Lamellar design for optimum strain relief and protection of the cable. Widely variable clamping range, therefore only a few gland sizes are necessary.

Multiple trapezoidal thread for secure and instant assembly.

Integral sealing lips for a water tight junction with the housing.

Materials:
Protection Seal: 70 PSI
  Body: Polyamide     IP 68, 5 Bar
  Bushing: Neoprene     Exceeds NEMA 6/6P Pressure rating
Color: Black (RAL 9005)
Temperature Range: PG & NPT: -20°C to +80°C
    Gray (RAL 7001)     Metric: -20ºC to 100ºC
* Locknuts included with PG and Metric Threads. Optional with NPT threads.
* SKINTOP® also available with a reducer bushing
* Flex Strain Relief Connectors available

Liquid Tight Non-Metallic Strain Relief
Cable OD
Inches
Mounting Hole
Diameter (inches)
Thread
Type
Black
Gray
Standard
Pack Size
PG THREADS
.098 - .256
.492
PG-7
S2107
S1107
100
.138 - .315
.599
PG-9
S2109
S1109
100
.157 - .394
.733
PG-11
S2111
S1111
100
.236 - .472
.804
PG-13
S2113
S1113
100
.354 - .551
.886
PG-16
S2116
S1116
50
.512 - .709
1.115
PG-21
S2121
S1121
50
.551 - .984
1.457
PG-29
S2129
S1129
25
.945 - 1.260
1.850
PG-36
S2136
S1136
10
1.378 - 1.496
2.126
PG-42
S2142
S1142
5
1.535 - 1.732
2.335
PG-48
S2148
S1148
5
NPT THREADS
.138 - .315
.675
NPT 3/8"
S2138
S1138
100
.197 - .472
.825
NPT 1/2"
S2112
S1112
100
.512 - .709
1.050
NPT 3/4"
S2134
S1134
50
.748 - 1.00
1.303
NPT 1"
S2101
S1101
25
METRIC THREADS
.138 - .276
.47
M 12x1.5
S2507
S1507
100
.177 - .394
.63
M 16x1.5
S2509
S1509
100
.276 - .512
.79
M 20x1.5
S2513
S1513
100
.354 - .669
.98
M 25x1.5
S2516
S1516
50
.433 - .827
1.26
M 32x1.5
S2521
S1521
25
.748 - 1.102
1.57
M 40x1.5
S2529
S1529
10
1.063 - 1.378
1.97
M 50x1.5
S2536
S1536
5
1.339 - 1.772
2.48
M 63x1.5
S2542
S1542
5

Liquid Tight Metallic Strain Relief
SKINTOP® MS-NPT/MSR-NPT
MA-M/NPT Adapters
SKINTOP MS-NPT
MA-M/ NPT Adapters
